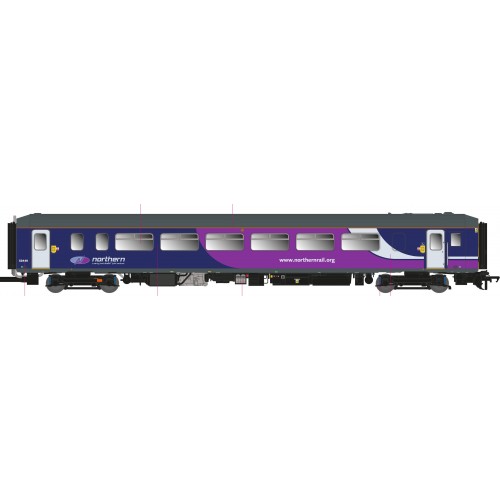

156440 Class 156 Northern Midnight Blue Livery

CLICK HERE:  To watch the Saltire Class 156 in action.

https://www.youtube.com/watch?v=nUOnS4na_UA

Specification:

• 57440 Driving Motor Second DMS (No Toilet)   (Motorised on this model)
• 52440 Driving Motor Second Lavatory DMSL (Toilet)  (Motorised on the model)
• Northern Blue Seating, Fitted Toilet, Drivers cab detailing, Independant Cab Lights, Operational door lights (On DCC Only),
• Bi Directional Lighting, Carriage lighting, High Specification Underframe, Low Profile motor giving a fully detailed interior.
• Northern Livery, BSI Couplings, Stainless exhaust cover & full HSE Labelling
• on bodyshell & underfloor,
• High specification paint finish & Decals.
• Motorised in both cars (As per the prototype) on the rear bogies, fitted with a Low profile, micro geared drive system which allows
• for a high level of underfloor and interior detailing.
• This model is designed for 2nd Radius 438mm, damage will be caused if run on 1st Radius due to scale clearance between the
• bogies and the chassis. 'Repairing this damage is chargeable'. (Set Track Points are 1st Radius).
• Destinations: Clitheroe-Manchester Victoria

DCC Sound Functions:  (All individual sounds are independently CV changeable to either increase or decrease the volume levels)

•     F0 Daytime Running
•     F1 Engines Start/Stop
•     F2 Playable High Horn
•     F3 Playable Low Horn
•     F4 Passenger Door Open/Close (Including working door lights & Delayed rear car door closing sequence)
•     F5 Brake Application when moving / Brake Dump when stationary
•     F6 Drivers Door Open/Close
•     F7 Compressor Speed Up  (Engine Speed up to increase the brake pressure)
•     F8 Toilet Discharge (Flushing sounds)
•     F9 Variable Speed Flange Squeal
•     F10 Dispatch Whistle
•     F11 Guard To Driver Buzzer
•     F12 Passenger Lighting (With fluorescent start up flicker)
•     F13 Directional Destination Blind Light
•     F14 Automatic Coupling / Uncoupling Sounds
•     F16 PA Announcements (Features 16 CV Changeable Destination Announcements)
•     F17 PA Announcements (Features 16 CV Changeable Destination Announcements)
•     F18 Detonators  (3 Bang Stop which varies according to speed)
•     F19 Directional Cab Light (Has Autofade, thus on moving the cab light will automatically switch off)
•     F20 Night Time Running
•     F21 Wabasto Carriage Heater

DCC NON Sound Functions Decoder : ESU 53614 Decoder

•     F0 Daytime Running Lights
•     F1 Nightime Running
•     F2 Interior Lights
•     F3 Passenger Door Lights
•     F4 Directional Destination Blind Light
•     F5 Directional Cab Light
•     F6 Parking Mode (F0 & F1 must be off)
